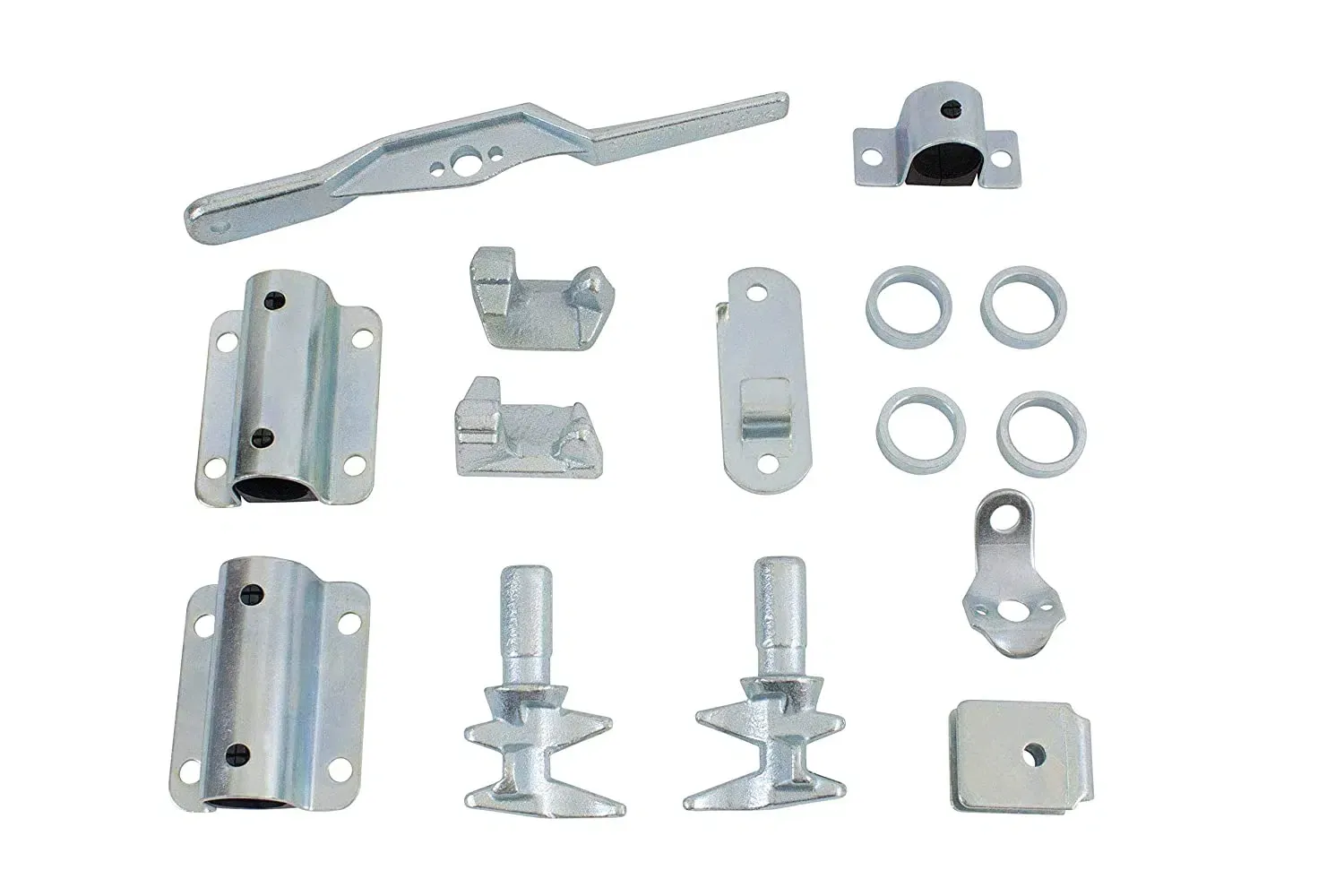

Shipping Container Door Lock Parts (Not Including Operation Bar)

Shipping Container Door Lock Parts (Not Including Operation Bar)

Does your container’s door hardware need a refresh? Look no further!

This kit includes everything you need except the door bar and the hardware – Good news: Your container already has those parts!

• Shipping container door lock set for shipping / storage containers.
• Bar End Insert: 1″ OD
• Plastic Sleeve for Bar: 1-1/2″ ID
• Includes everything besides hardware and the operation bar.

Description for Shipping Container Door Lock Parts

The cam and keeper system is the primary locking mechanism on a shipping container door. The cam is a metal bar, usually made of steel, that rotates to engage with the keeper. The keeper is a bracket, also typically steel, welded to the container frame. When the container doors are closed, the cam is rotated so that it hooks behind the keeper. This creates a strong, secure connection, preventing the doors from opening. The number of cams and keepers per door varies depending on the container size, but typically a standard container door has four cams and keepers. The design and material of the cam and keeper are critical to the overall security of the container.

Lock Rods (Locking Bars)

Lock rods, sometimes called locking bars, are vertical steel bars that run the height of the container doors. These rods are connected to the cams and are essential for the locking process. When the operating handle is turned, it rotates the cams, which in turn move the lock rods. The lock rods slide up or down, engaging or disengaging the cams with the keepers. The rods are designed to be robust and withstand significant force, contributing to the overall security and weather-tightness of the container. The condition of the lock rods is crucial; bent or damaged rods can compromise the container’s security.

Operating Handle and Hardware

The operating handle is the lever used to engage and disengage the locking mechanism. It’s usually located on the exterior of the container doors and is connected to the lock rods. The handle allows for easy operation of the locking mechanism. Other hardware components include hinges, which allow the doors to swing open and closed, and various brackets and fasteners that hold the entire system together. Regular maintenance of the operating handle and associated hardware is essential to ensure the container doors can be easily and securely locked.
